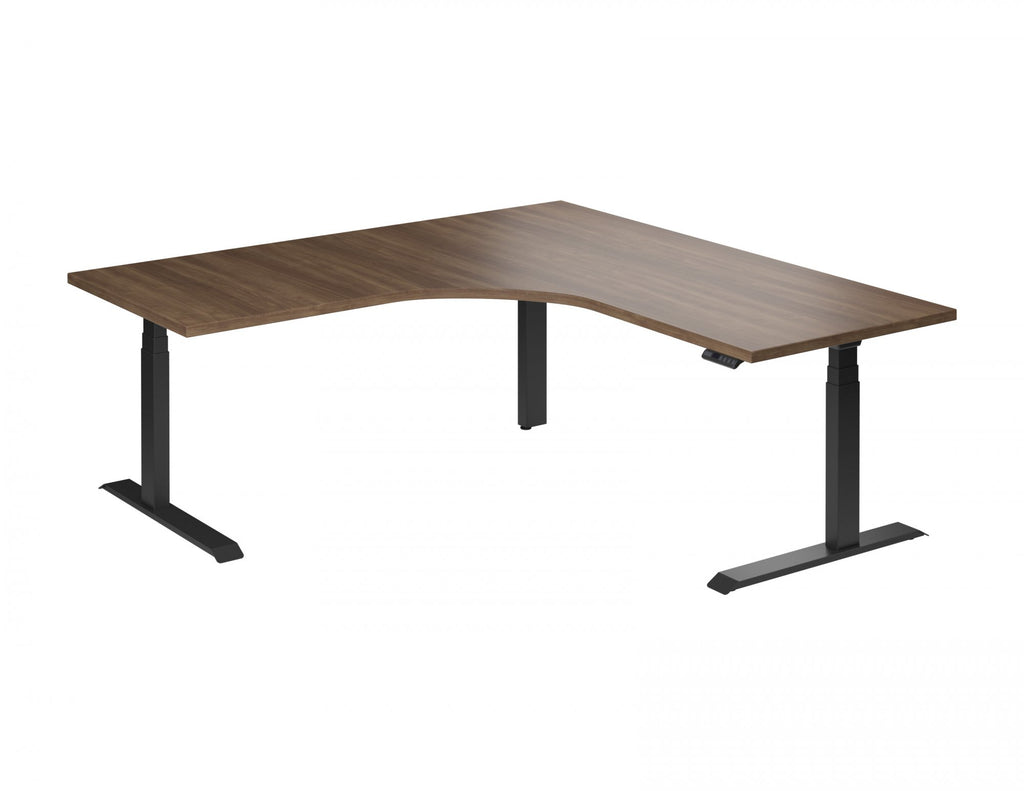

Ascent4 3-Leg Electric Height Adjustable Table
The Workrite Ascent4 EX three-leg table carries an equal-corner worksurface on Workrite's value frame. The third leg sits under the corner, so the surface stays rigid through the full height range instead of flexing where two wings meet. It is the configuration for a private office or a manager's station where the user wants a wrap-around desk that still goes to standing height.
Ascent4 sits in the middle of the three frame families we carry, between the entry-level Fundamentals and the flagship Sierra HX. In the three-leg build it is a genuinely heavy-duty desk: 300 lb of payload after the top, on a frame Workrite prices as a value line. Against Sierra HX you give up a little speed (1.5" per second against 1.6"), the wider 90" frame range, and Sierra's lifetime warranty; the payload at three legs is the same 300 lb on both.
Key features
- Three-leg frame for equal-corner worksurfaces, height range 22.52" to 48.7"
- Travel speed of 1.5" per second
- 300 lb payload on the three-leg frame, measured after the worksurface
- Programmable memory switch with three presets, included
- Gyro-Sensor anti-collision technology, standard
- Flat foot kit included, low enough for most mobile pedestals to sit over
- GREENGUARD GOLD certified and UL962 listed; meets or exceeds BIFMA X5.5
- 0.3 W standby power
Specifications
- Frame range: corner sizes 54" to 72" wide by 42" to 72" wide
- Worksurface depths: equal-corner tops in 23" and 29" wing depths
- Height range: 22.52" to 48.7", meeting BIFMA G1-2013
- Payload: 300 lb after the top
- Gross load capacity: 428 lb, not including the top or safety factor
- Maximum current draw: 5 A at 120 V, 60 Hz
Worksurface and finish
The price shown includes the Ascent4 EX three-leg base set, the programmable switch, the flat foot kit and an equal-corner laminate worksurface. Six sizes are offered under Top Size: 58" x 58", 64" x 64" and 70" x 70", each with 23" or 29" deep wings. The corner worksurface ships in two pieces and is joined together during assembly, worth knowing before the installer arrives.
All seven Tier 1 laminates are included in the price shown: Hardrock Maple, Formal Mahogany, Slate, Millwork Cherry, Folkstone Gray, Walnut Grove and White. The base is powder-coated Silver, Black or White. The foot kit is matched to the depth of the top you select, 24" feet under 23"-deep tops, 30" feet under 29"-deep. Need the frame on its own? Select Base Only (No Top Included) under Top Size.
Tier 2 and Tier 3 laminates, 120-degree corner tops and wider frames are quoted separately; custom laminates add a 4 to 6 week lead time. Our space-planning service is free, and we will lay the corner out to scale before you order.
